| Specification＼Type |

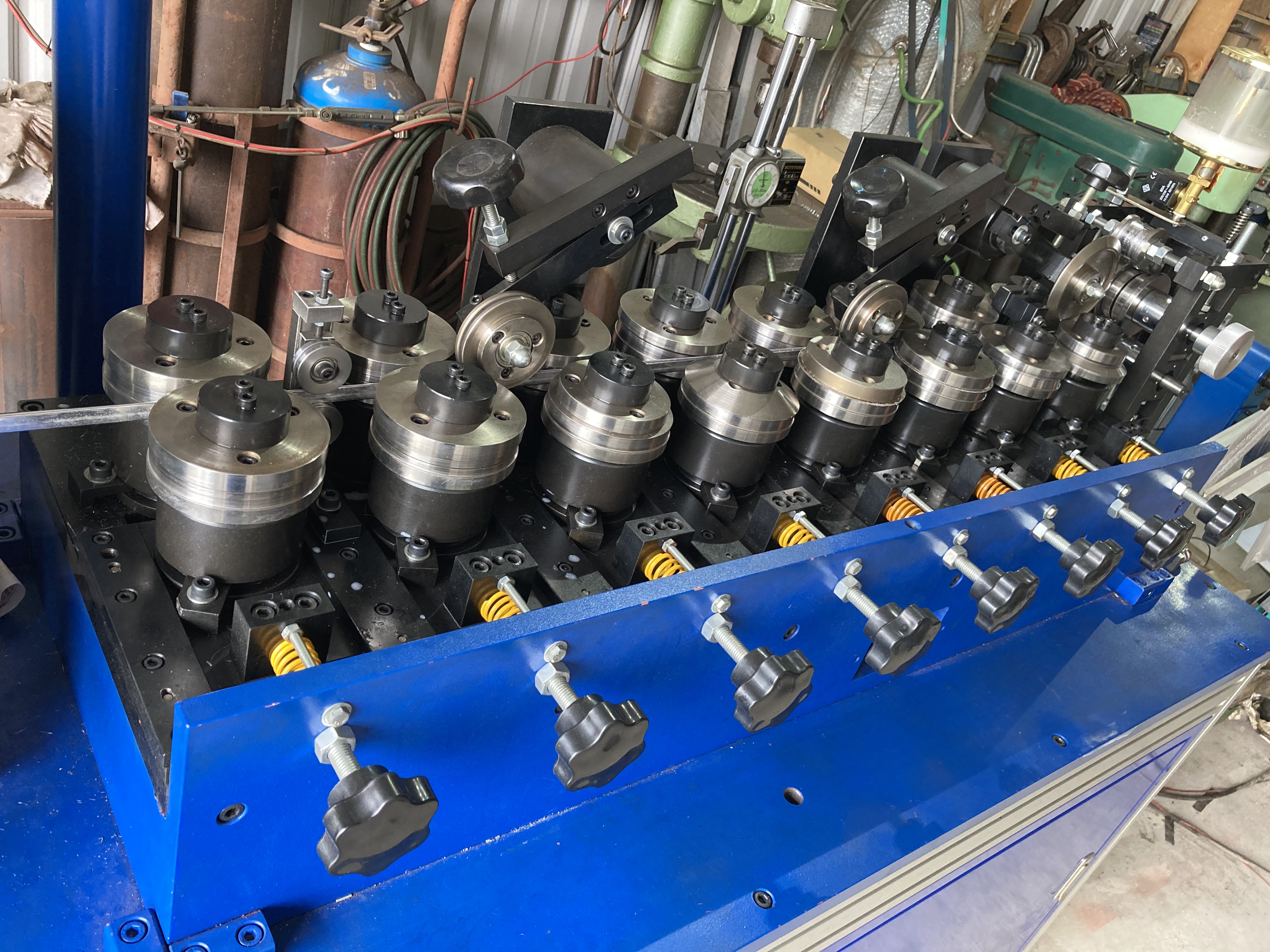

Double Tinning Tube machine |
| Production mode |
1 time setting 5 lengths and 5 quantities |
| Tube Width |
14.0 mm (as your requirement) |
| Tube Thickness |
2.5 mm (as your requirement) |
| Material Size |
Brass or copper (as your requirement) |
| Speed |
8M/min-15M/min |
| Cutting Range |
200mm~2000mm |
| Tolerance of tube length |
± 0.5mm |
| Air Consumption |
900 l/min(6kgs) |
| Power |
15 kw |
| Machine Dimension |
1000(W) x 1600(H) 3500(L) mm |
| Weight |
1500kgs |
| Remark |
According to customer’s requirement, we can customize the machine. |
